Feature

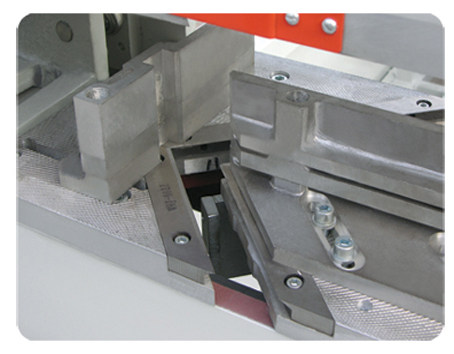

◎The machine suitable for colored, co-extrusion and sprayed PVC profiles, the welding slag

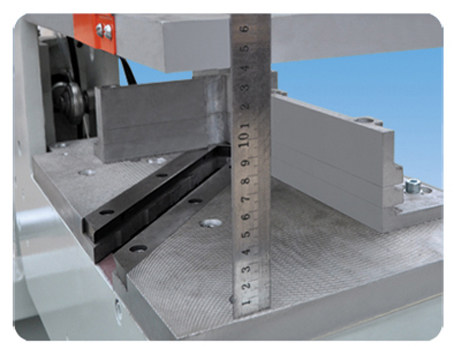

immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm.

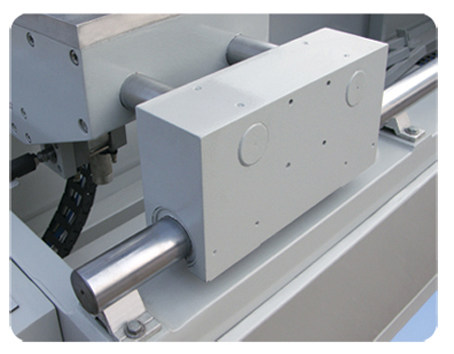

◎JDB solid oilless bearing kinematic pair, LM linear guide kinematic pair and PLC control
system adopted result high accuracy and efficiency.
Technical Parameter:
Model
SHWD3-120×3600
Input voltage
380/220V 50Hz
Input power
3.5Kw
Air pressure
0.6~0.8MPa
Air consumption
200L/min
Welding length
400~3600mm
Welding height
20~120mm
Overall dimension
4300×950×1700mm
