SHWG3-120×3600 Three-head Double Side Seamless Welding Machine
Time:2018/12/25

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎The machine suitable for colored, co-extrusion and sprayed PVC profiles, the welding slag immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm.

    ◎It adopts JDB solid oilless bearing kinematic pair, LM linear guide kinematic pair and Mitsubishi PLC control system result high accuracy and efficiency.



    Technical Parameter:


    Model

    SHWG3-120×3600

    Input voltage

    380/220V 50Hz

    Input power

    3.5Kw

    Air pressure

    0.6~0.8MPa

    Air consumption

    200L/min

    Welding length

    400~3600mm

    Welding height

    20~120mm

    Overall dimension

    4300×990×1700mm

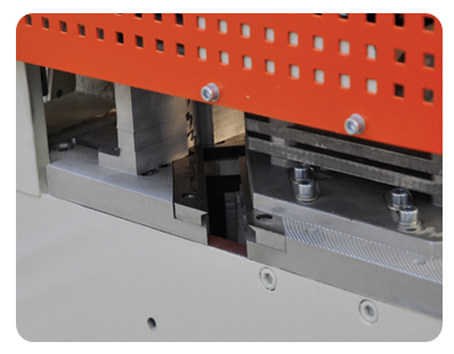

  • 20181225135854102.jpg@!w800

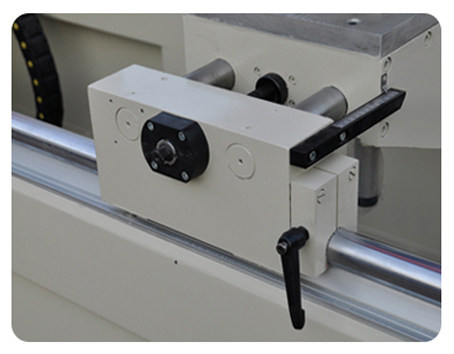

    20181225135855965.jpg@!w800
