Feature

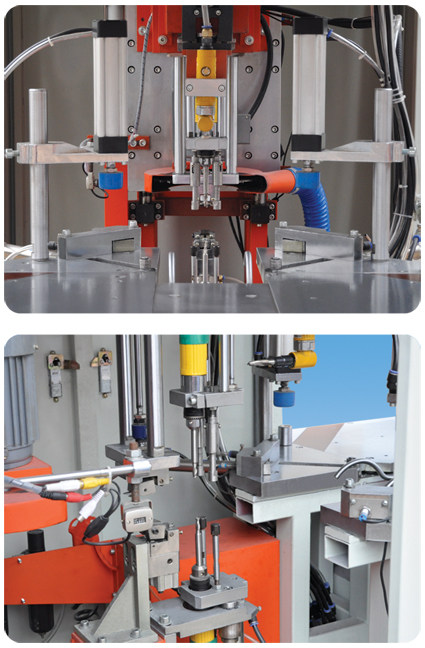

◎ For PVC profile welding slags cleaning.
◎ Can clean multi-shaped welding slags, clean the up/bottom, outside ellipse and the outside
vertical surface, inside corner and sealing groove etc. at the same time.
◎ It adopt imported server and advanced LCD touched screen.
◎ It can store hundreds of programs, fit for various profile processing.
◎ It has characteristics of reliability, high processing quality, high efficiency.
Technical Parameter:
Model
SQJ-CNC-120B-6
Input voltage
380V 50Hz
Input power
2.2 kw
Air pressure
0.5~0.7MPa
Air consumption
150L/min
Profiles width
20~120mm
Profiles height
Groove width
3±0.20mm
Groove depth
0.3±0.15mm
Overall dimension
1800×1000×1700mm
